BASIC INFO

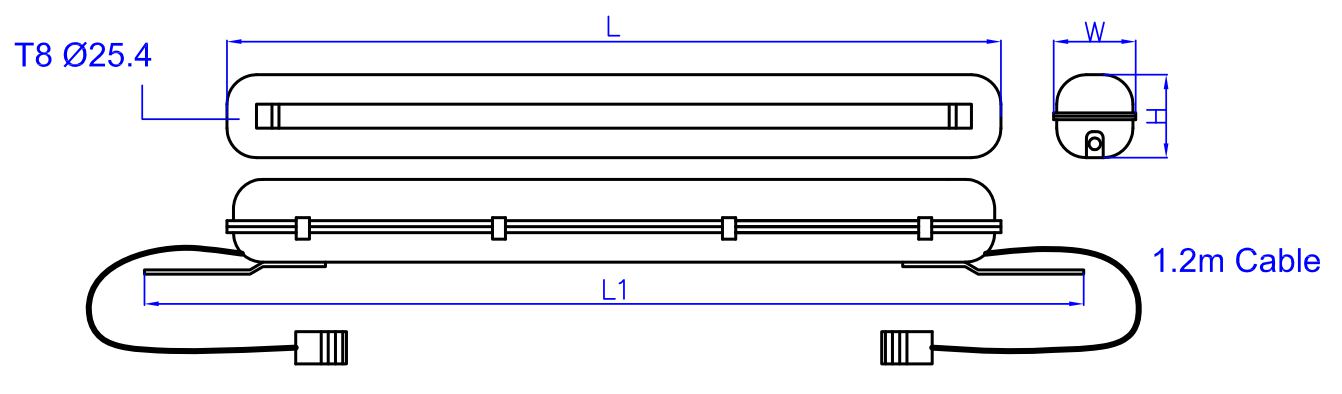

- Product Dimensions
| Model | L(mm) | L1(mm) | W(mm) | H(mm) | Flux(lm) |
| BT8-1005-36W | 1267 | 1427 | 80 | 85 | 3200 |

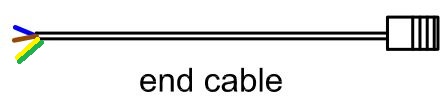

- End Cable
| Cable Drawing | Length (m) | Cable type |
 |
8m or 10 m | H05RN-F 3x1.0mm2 or other optional cables |

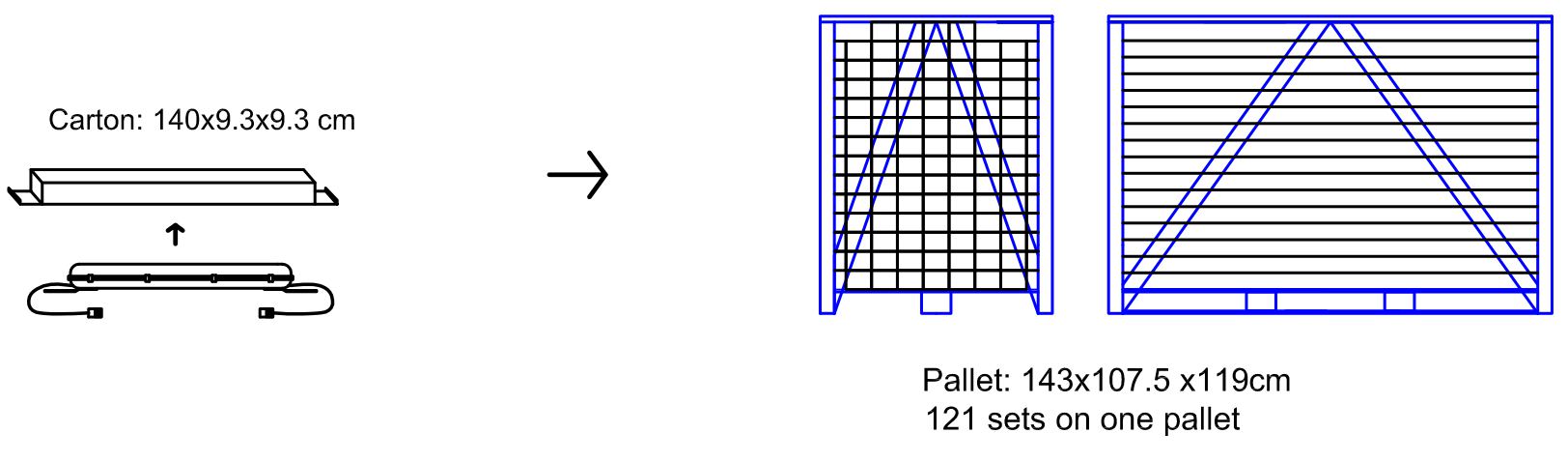

- Packing way for export shippment

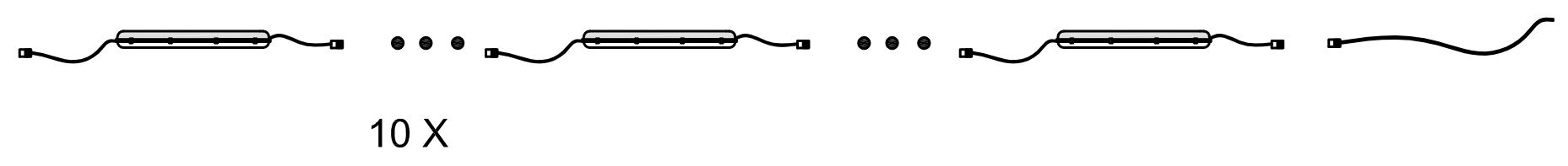

- Series connection in the Shaft
