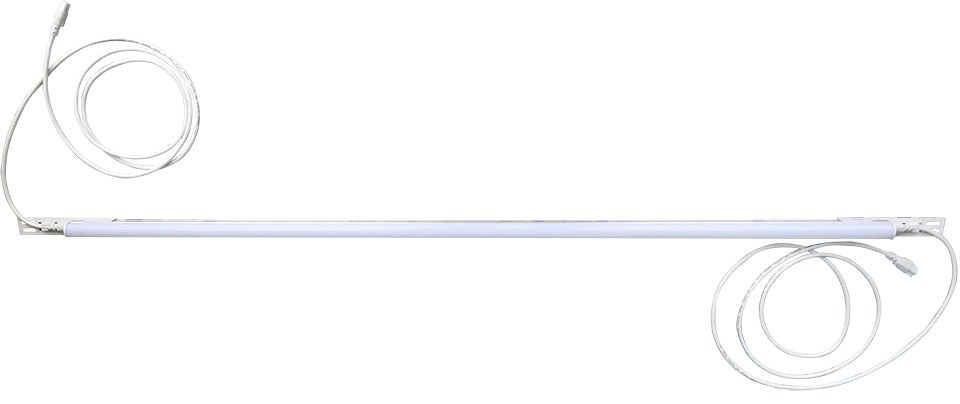

BASIC INFO
![](/pic/other/2017-06-07-20-06-326.jpg)

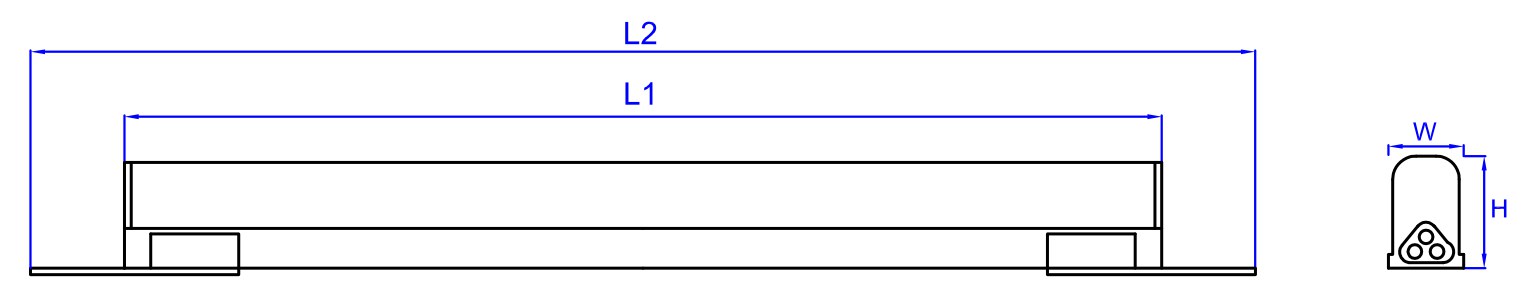

- Product Dimensions
![](/pic/other/2017-06-07-19-49-238.jpg)
Model No. | L1(mm) | L2(mm) | W(mm) | H(mm) | Flux(lm) | Ra | Input voltage |
AT6-1003-12W | 865 | 1025 | 22 | 31 | 1200 | >80 | 185-265VAC |
AT6-1003-16W | 1155 | 1315 | 22 | 31 | 1600 | >80 | 180-265VAC |

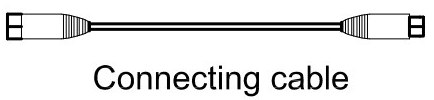

- Connection Cables
Cable Drawings | Length (m) | Cable type |
![]() |
Can be made depends on your shaft request, such as 2m,3m,or 5m... |
H05VVH2-F 3X0.75mm2 |
![]() |
10m normally | H05VVH2-F 3X0.75mm2 |

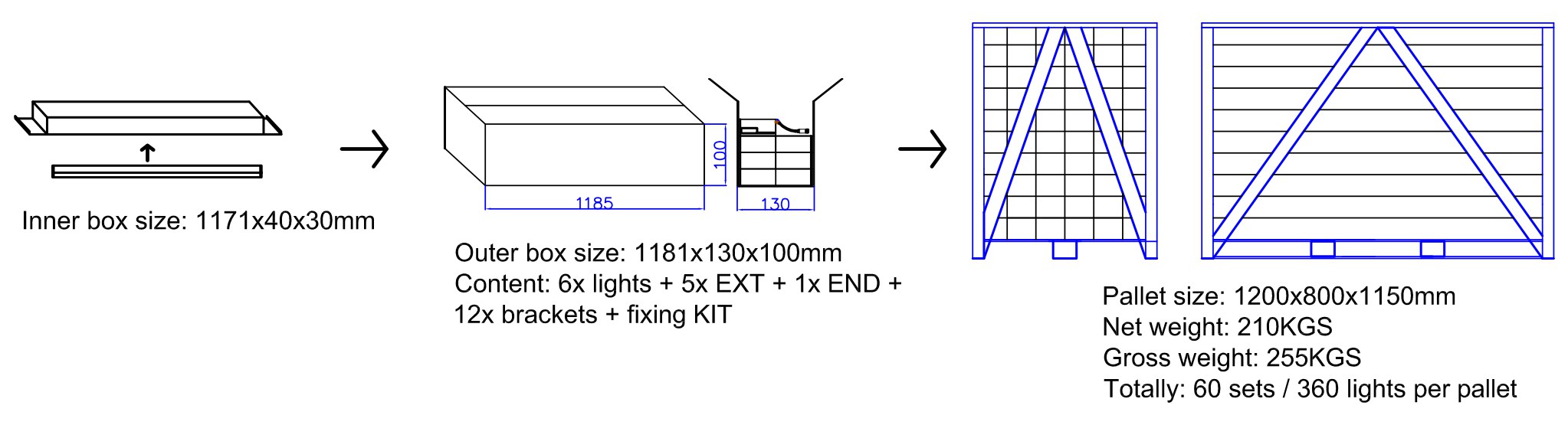

- Packing way for export shippment
![](/pic/other/2017-06-07-20-01-151.jpg)

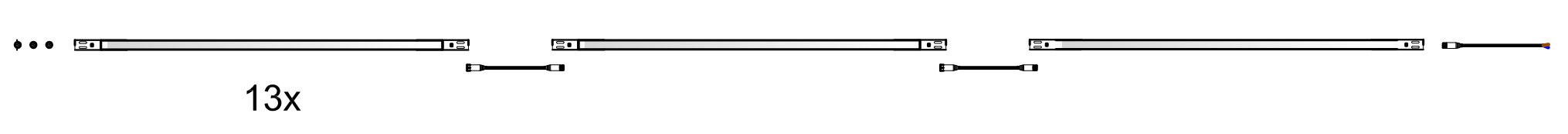

- Series connection in the Shaft
![](/pic/other/2017-06-07-21-36-219.jpg)
