LED Panel light for Elevator Cabin 3030A

  • Product item:DLP-2001-3030A
  • Rated Power: 10W
  • Flux: 800lm
  • Dimension 298*298*8mm
  • Lamp LED Cri >70
  • Lamp Cct 3000-6500K
  • Input Voltage 100-264V
  • Lifespan 50,000 hours
  • Seamless Corner, Brushed Stainless Steel, LED Panel

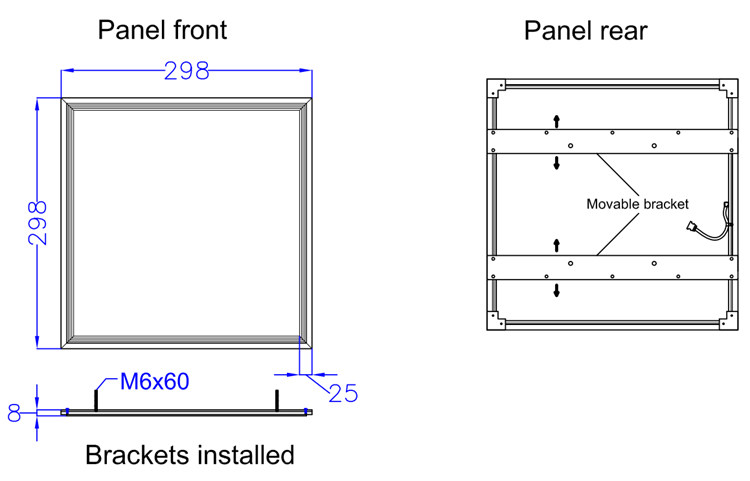

 LED Panel Dimensions

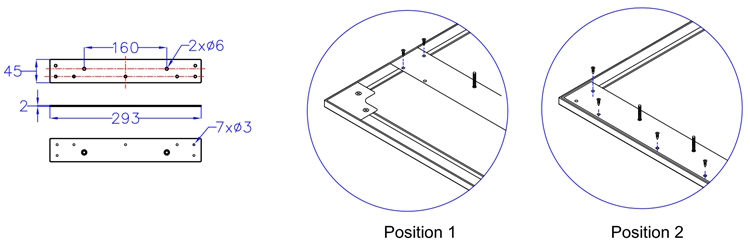

Bracket dimension and installation

The brackets are movable, the position can be changed according the demand

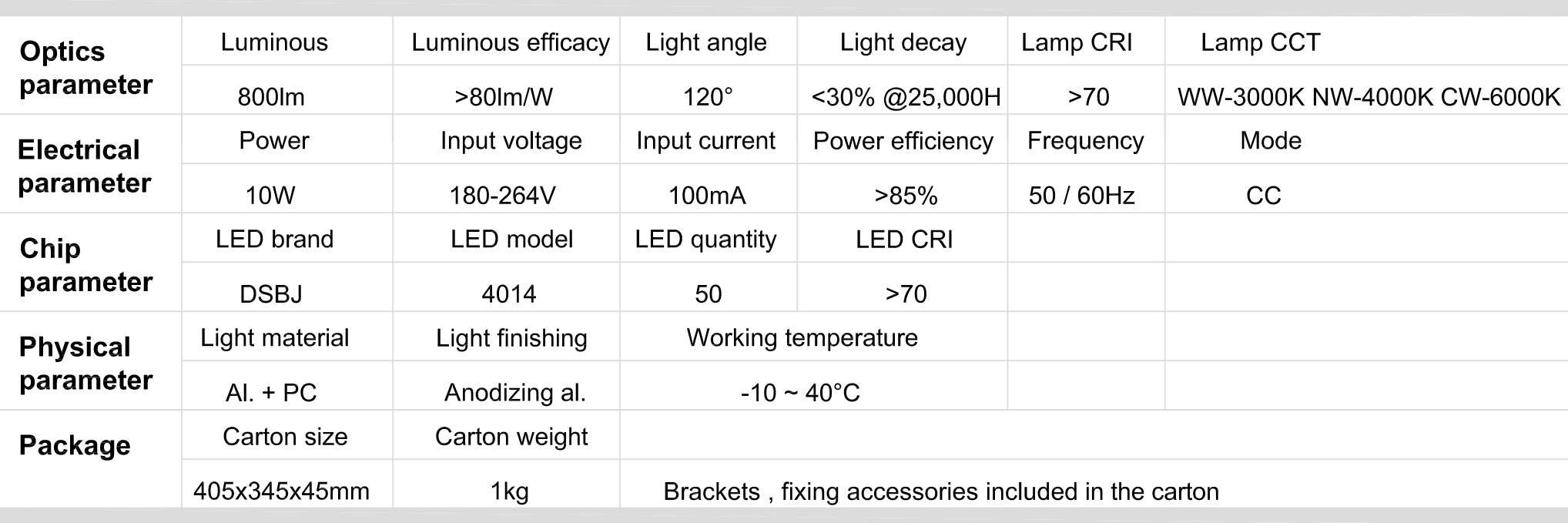

Technical Data
