LED Emergency Power Supply - 12VDC for Elevator Cabin

Product item:EPS-3001-12VDC
Rated Power 9W
Dimension 230*150*60mm
Input Voltage 220-240VAC
Output Voltage 12VDC±10%
Duration 90min, 180min(2 optional)
Battery Type Ni-CD
CE Certificate

BASIC INFO

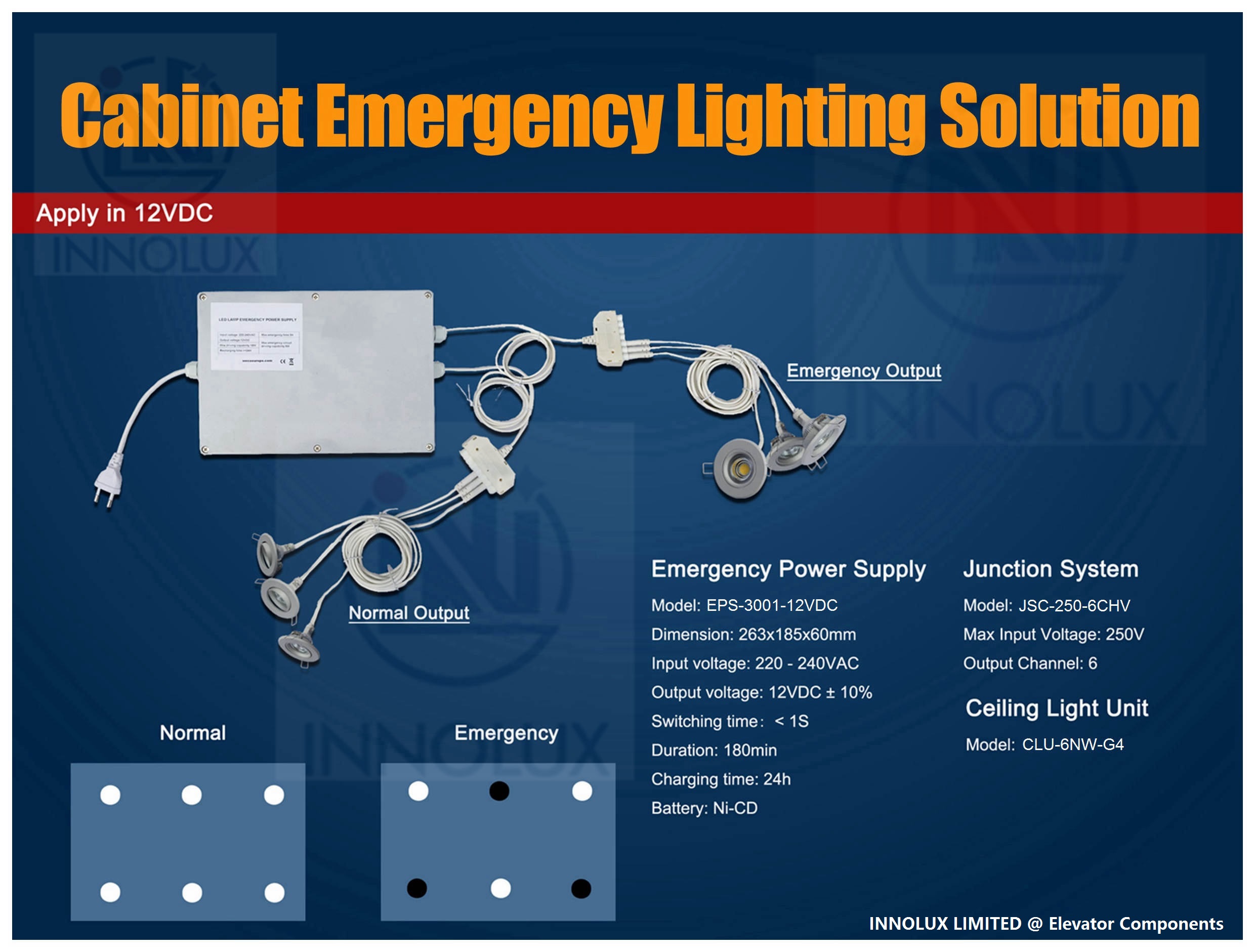

The emergency power supply mainly apply in the elevator or other conditions, which could provide no less than 90 minutes running power to the light unit like LED panel, ceiling light or fluorescent.

How to use it...?

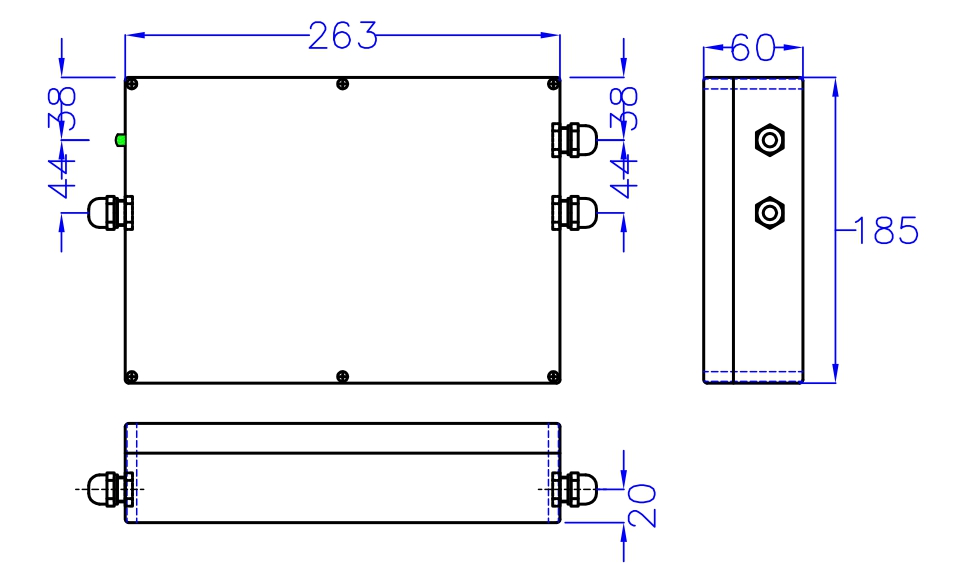

12VDC Emergency power supply dimensions:

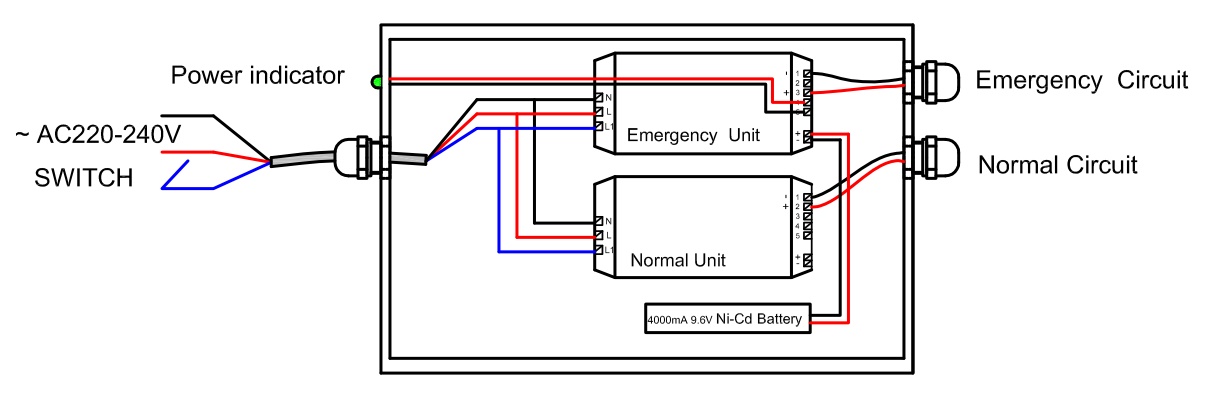

Wiring:

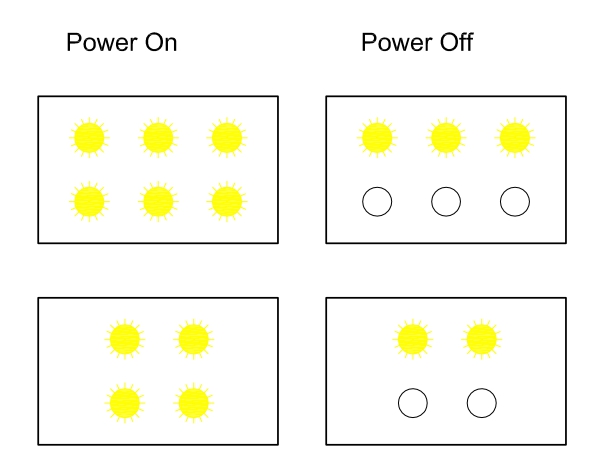

Working indication:

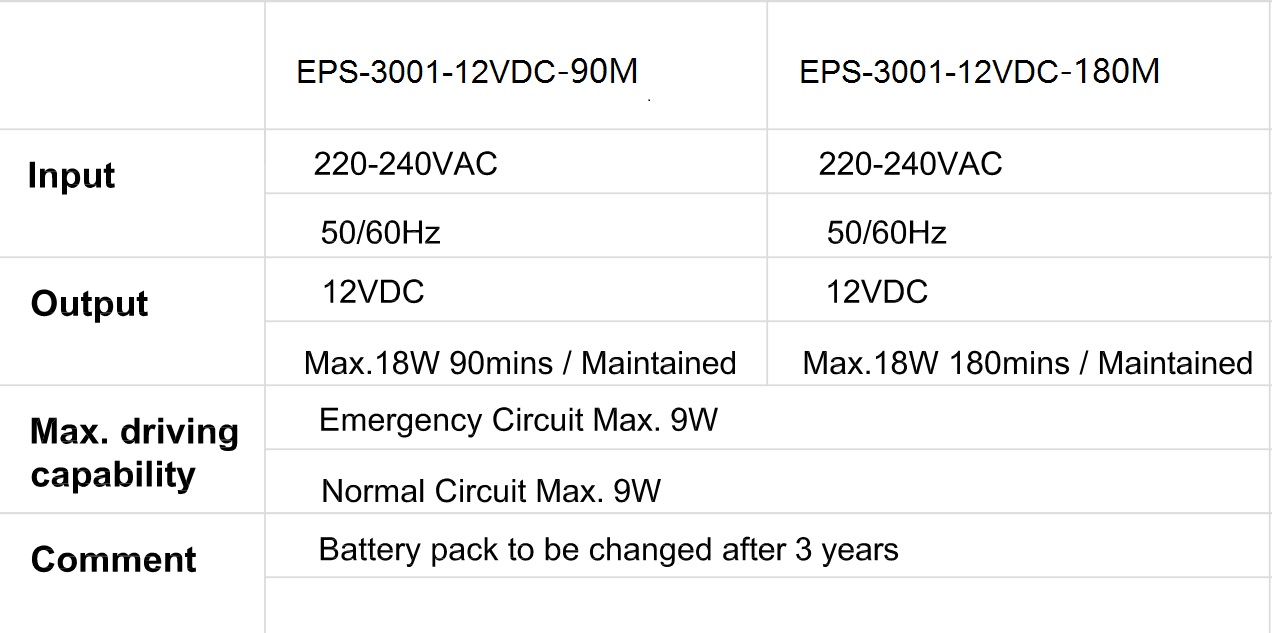

Technical Data Sheet:
